transform your longboard into an electric skateboard
With the Lucid Electric DIY Drive Kit, making any deck electric is simple. Our kit adapts to almost any skateboard and is very easy to setup and install. Align the paper template to position where you would like to mount the kit and drill the holes. Once mounted, it’s only 120 minutes before the kit reaches a full charge and then your off!
The kit comes with wireless/bluetooth remote for easy control. There are four modes to select from giving you a range of speeds of 9mph, 16mph, 24mph, 26mph. The slower the mode the longer the battery life and is ideal for beginners with the slower modes of speed.
WARRANTY
Every new Lucid DIY Electric Kit comes with our a 1 year limited warranty. Once your electric kit is registered, we provide each original retail purchaser a warranty against defects in materials and workmanship, being stated as the following:
1 Year
- Parts replacement due to defect or workmanship
- Full replacement due to defect or workmanship
- We will work with you make sure you are satisfied and everything is in proper working condition.
This warranty does not cover:
- Improper assembly.
- Improper follow-up maintenance.
- Installation of components, parts, or accessories not compatible with the Lucid Electric Kit as sold.
- Damage or failure due to accident, misuse, abuse, or neglect.
- Electric Kits used for commercial activities, including those in rental, or demo.
CUSTOMER REVIEWS
You can write your custom liquid / html / javascript code here.
ENter your details below
In order for your Lucid DIY Electric kit to be covered under warranty you must fill out and submit the form below. You can find your registration number on the side of the aluminum battery back holder. If you do not see your registration number please contact us ASAP - info@lucidgrip.com
LUCID DIY ELECTRIC KIT HAS POWER!
Smooth acceleration with two in-wheel motors power you to top speeds of up to 26 mph / 42 kmh
ELECtric DRIVE KIT SPECS
- Speed: Up to 26 Mph / 42 kph
- Standard Range Up to 15 Miles / 25 km
- Easy Swap Batteries No tools required. Simply turn a latch and swap out batteries.
- Hub Motor Power High Torque Dual 750 Watts *2
- Hub Motor Torque 4.7 Nm x2
- Hill Climbing Up to 25% Grade
- Battery Power 158.4 Wh Samsung Lithium Ion with custom BMS
- Weight 14 Ibs / 6.5 kg
- Dimensions 38(L) ,10.6(W), 5(H) inch

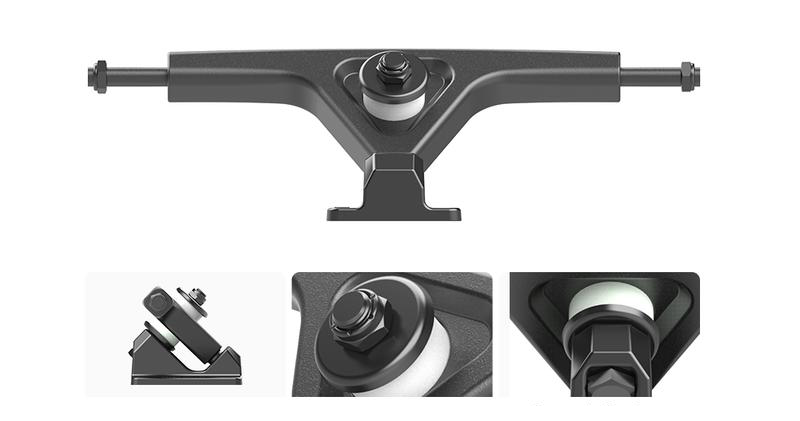

- Trucks 10.6 Inches / 270 mm width CNC Precision Machined
- Ride Modes 4 Safe Riding Modes (Beginner/ Eco/Fast/Max)
- Braking System Electronic Regenerative Braking
- Wheels 96 mm
- Remote Ergonomic Bluetooth Remote with OLED
- Charging Time 120 min
FAQ
Lucid Electric DIY Kit Storage and battery care?
If the electric kit will not be used for extended periods of time, store the board fully charged for a maximum period of three months. After 3 months, discharge the battery at least 50% and then charge back to full capacity.Store batteries at room temperature between 40-80°F.(4-27°C) Do not expose battery pack to direct sunlight (heat) for extended periods. Store batteries separately from anything hazardous, such as explosives, combustibles, or any other highly flammable material.
How much weight can Lucid DIY Electric Kit handle?
The maximum load capacity is 220 pounds (100kg). Performance will be affected as weight increases and can impact battery life limits for distance and speed and capabilities on inclines.
Can my board be used like a normal skateboard when it's out of power?
Yes, your board will retain the ability to push and ride like a traditional skateboard when the throttle is disengaged and there is no battery.
Can the battery be replaced?
The battery can be replaced and our battery life for our boards is 600 deep cycles. After 600 full cycles, the battery will still work but would only have approximately 70% power and capacity. New batteries are easy to order and replace. If you need to replace the battery, just order online at our through our site located here:

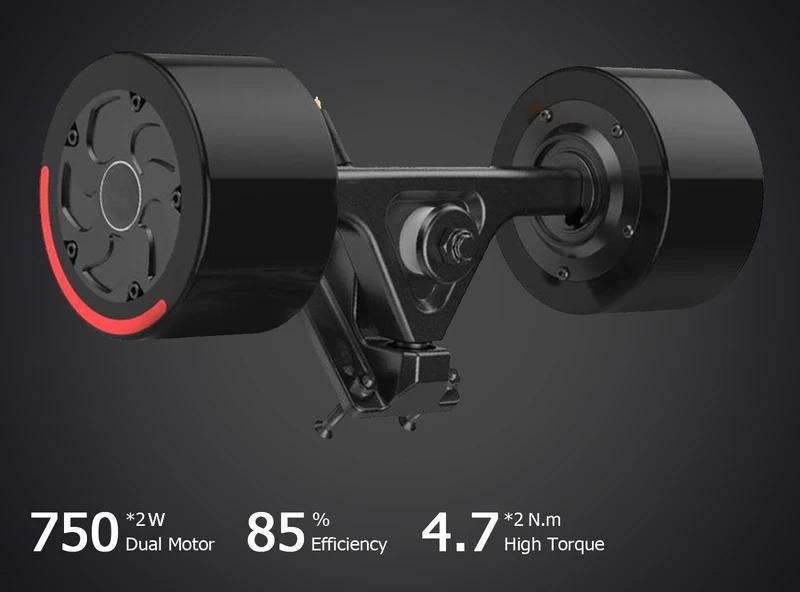

OUTSTANDING ACCELERATION
WITH HIGH-PERFORMANCE
The HUB MOTOR is different from the traditional belt drive system with complex construction and the risk of belt breakage. The Lucid Electric DIY Drive Kit is equipped with dual Hub motor driving which is safer and more compact. It offers a smoother and quieter ride with a top speed of 26 mph / 42 kph and rides great in a wide variety of conditions. The high-performance in-wheel motor has an incredible transformation efficiency of 85% to ensure an excellent acceleration and longer range.

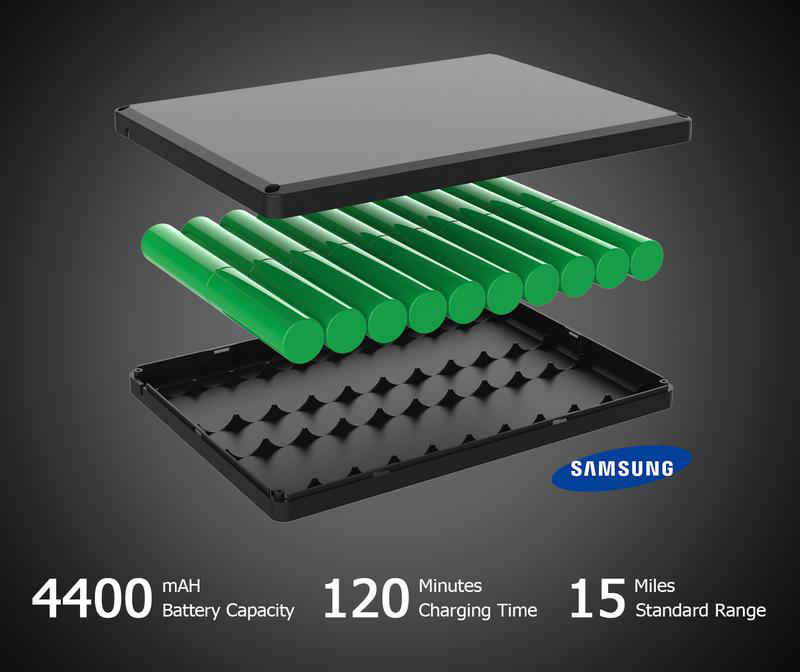

SAMSUNG HIGH DENSITY BATTERY PACK WITH GREAT CAPACITY
More intelligent, longer range, more portable, and quicker charging battery with Samsung Lithium Ion battery of 158.4Wh with custom BMS. This battery has the capacity up to 4400mAH, and the maximum mileage up to 15 miles / 25 kilometers. Quick charging of only 120 minutes! It also has a longer life with the efficient electrical core that supports more than 600 charges. Do not leave battery charging unattended.

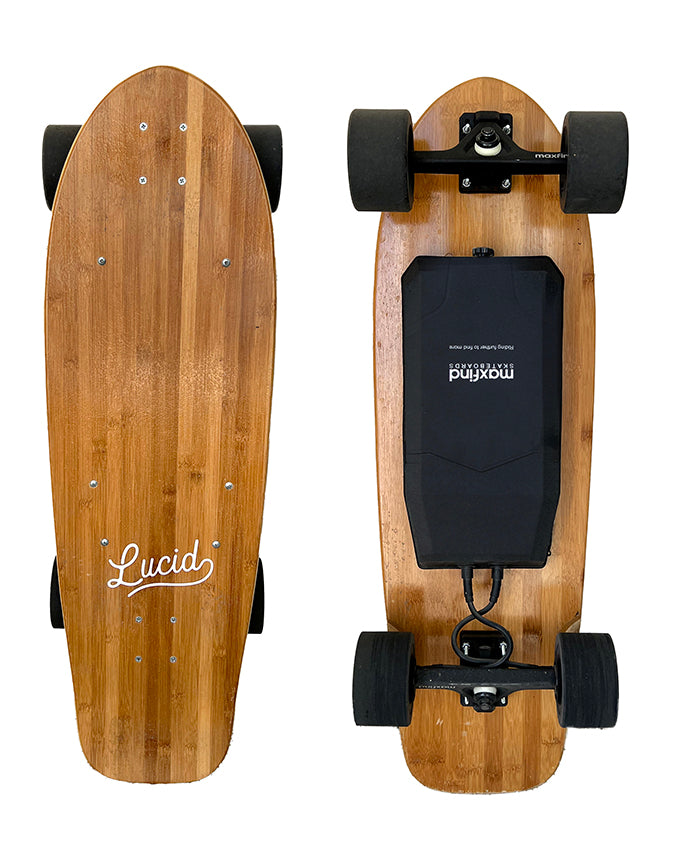

ELECTRIC SKATEBOARDING
Accelerate from zero to hero with maximum power. The Drive Kit is so compact, it will mount it on almost any deck and is easy to take almost anywhere! The dual braking is just one of many special safety features of the Lucid DIY Electric Skate Kit.

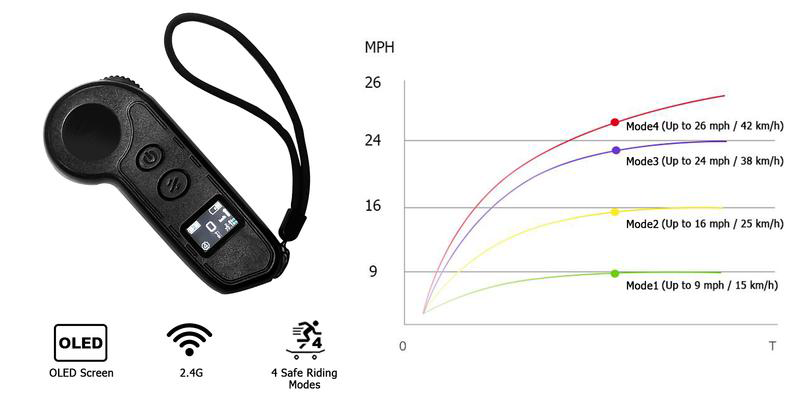

smart remote
2.4GHZ multi-point FM makes sure that your connection won’t get disrupted. Various riding parameters can be set and viewed via the OLED screen. Choose from the four different speed-modes based on your skill level and preferred riding experience whether you are a beginner or professional.

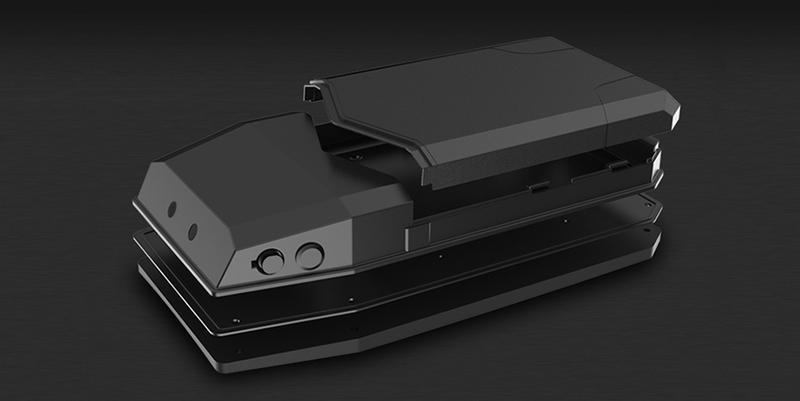

ALUMINUM ALLOY BATTERY PACK
Removable Design and precision manufactured with high strength extrusion, givesbetter heat radiation, impact resistance, and also a great appearance!

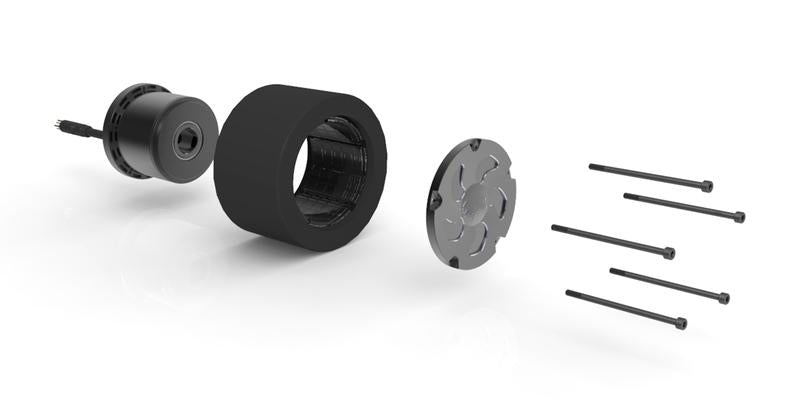

REMOVABLE COVEr OF wheel HUB MOTOR
The IP65 Waterproof, heat sink design, and easy replacement of a worn tire/wheel gives you peace of mind. You can also freshen your motor by removing five screws with the tools provided.
96mm Wheels
Custom-made for tough riding conditions. The 96mm wheel can adapt to more roads, higher speeds, and designed to withstand a longer ride.
Waterproof
The Hub Motor IP65, Battery IP65Innovative glue filling technology of ESC, rapid removal and waterproof ring structure of Hub motor, and the semi-circular reinforcement of the waterproof battery pack. Each component has the well - founded waterproof, dustproof and shockproof components to protect against exposure to outdoor elements such dirt and water. Do not submerge in water.
WHAT'S IN THE BOX?
1. New Drive Kit Pro
2. OLED Bluetooth Remote
3. Fast UL Charger
4. T Skate Tool
5. Remote Control Charger
6. Remote Control Lanyard
7. Charging Cable
8. User Manual
9. Samsung Battery
